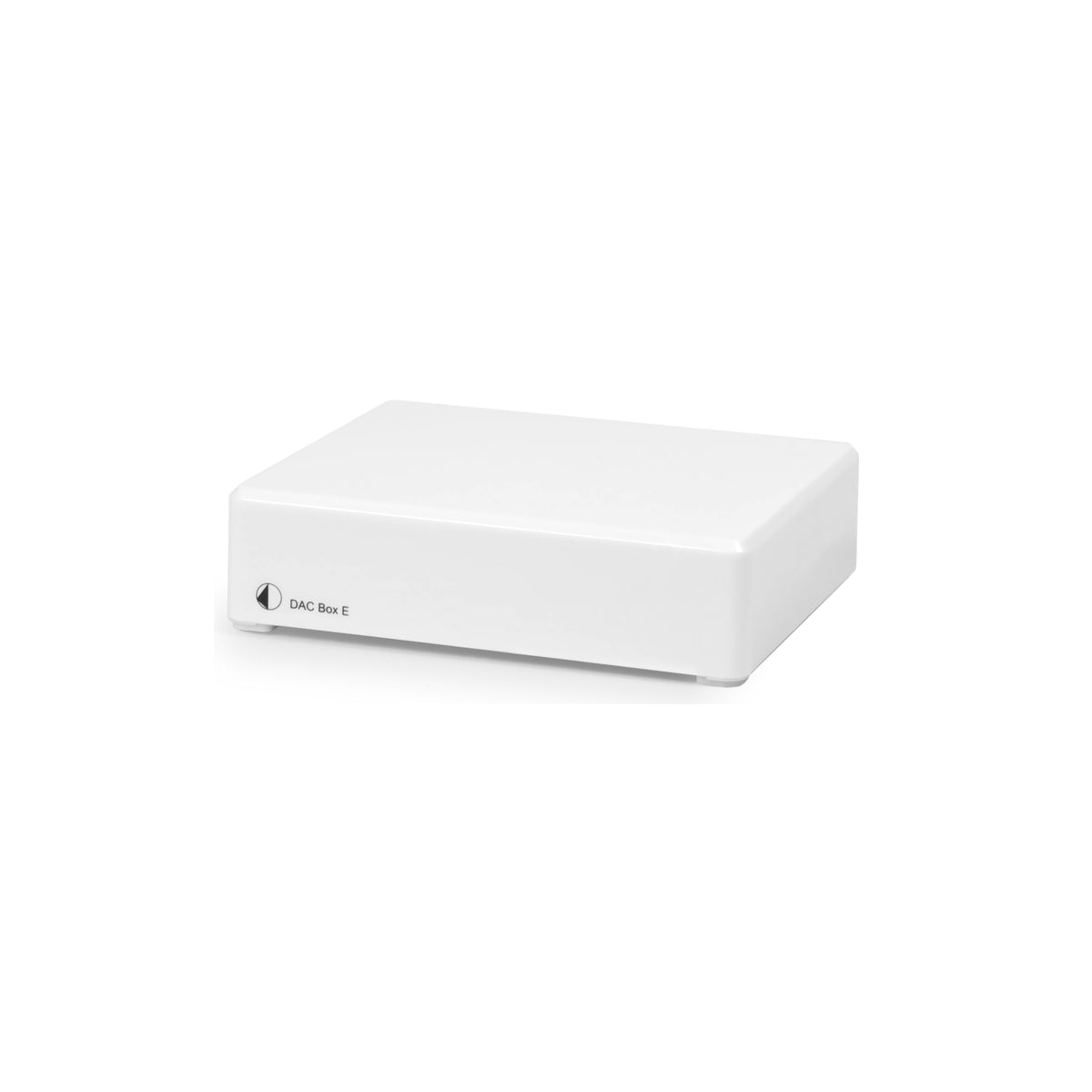

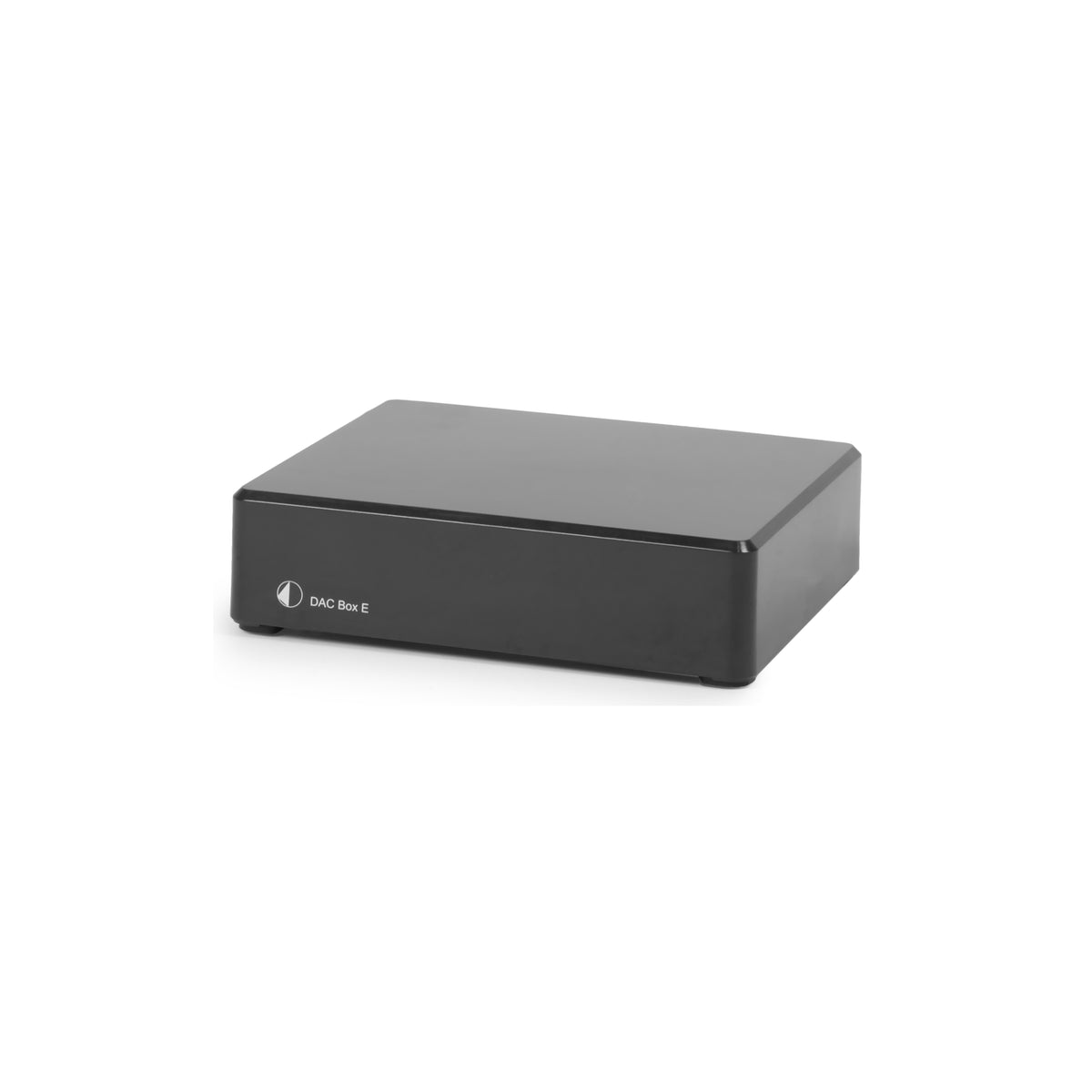

Pro-Ject DAC Box E
Prisvenlig DAC med toslink og coaxial digitale indgange.
Pro-Ject DAC Box E er en 24-bit/192 kHz kompatibel model med optiske og koaksiale S / PDIF-indgange.
Pro-Ject DAC-lyd DAC Box E tilbyder konvertering af god kvalitet og er et praktisk tilbehør til at tilslutte et HDTV til en stereoforstærker, for eksempel.

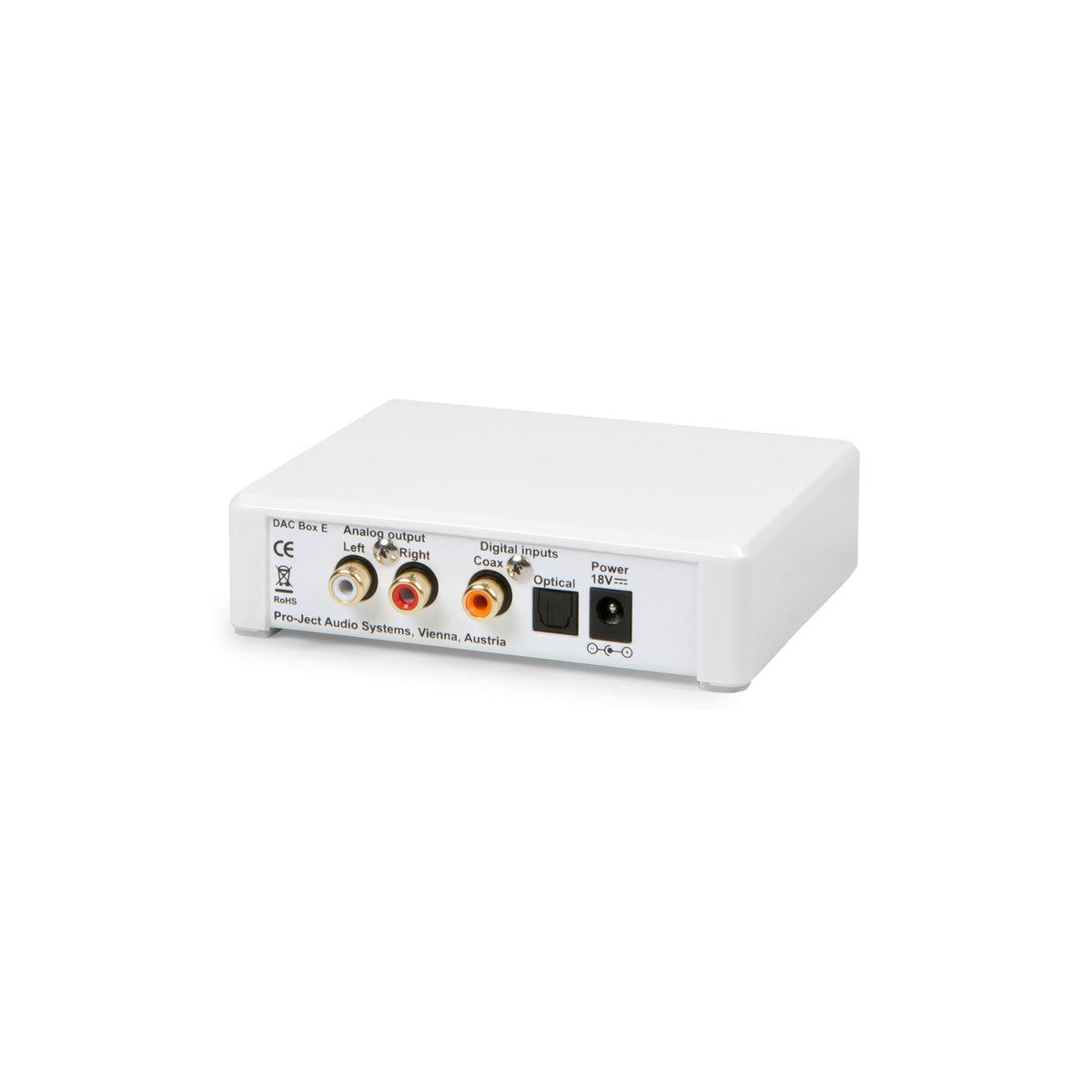

| Line-level output | 1 pair RCA/phono sockets |
| Output voltage | 0.7 Vrms |
| Digital inputs | 1x coaxial (S/PDIF), 1x optical (TOSlink®) |
| D/A converter | Texas Instruments TLV320DAC23 Cirrus Logic CS4344. 24Bit/192kHz |
| Supported audio format | PCM (LPCM) (Stereo only, no support for multi-channel formats) |
| Sampling rates Optical and coaxial input | 44.1 kHz, 48kHz, 96 kHz and 192 kHz (coaxial only) |
| Outboard power supply | 18 V / 500 mA DC; 220 - 240V, 50Hz |
| Power consumption | 200 mA DC, <1W in standby |
| Dimensions W x H x D (D with sockets) | 120 x 32 x 100 (106) mm |
| Weight | 250 g without power supply |
Pro-Ject DAC Box E er en 24-bit/192 kHz kompatibel model med optiske og koaksiale S / PDIF-indgange.
Pro-Ject DAC-lyd DAC Box E tilbyder konvertering af god kvalitet og er et praktisk tilbehør til at tilslutte et HDTV til en stereoforstærker, for eksempel.
| Line-level output | 1 pair RCA/phono sockets |
| Output voltage | 0.7 Vrms |
| Digital inputs | 1x coaxial (S/PDIF), 1x optical (TOSlink®) |
| D/A converter | Texas Instruments TLV320DAC23 Cirrus Logic CS4344. 24Bit/192kHz |
| Supported audio format | PCM (LPCM) (Stereo only, no support for multi-channel formats) |
| Sampling rates Optical and coaxial input | 44.1 kHz, 48kHz, 96 kHz and 192 kHz (coaxial only) |
| Outboard power supply | 18 V / 500 mA DC; 220 - 240V, 50Hz |
| Power consumption | 200 mA DC, <1W in standby |
| Dimensions W x H x D (D with sockets) | 120 x 32 x 100 (106) mm |
| Weight | 250 g without power supply |
